Morphology - FINEL2D animations


Morphodynamic calculations Haringvliet Estuary

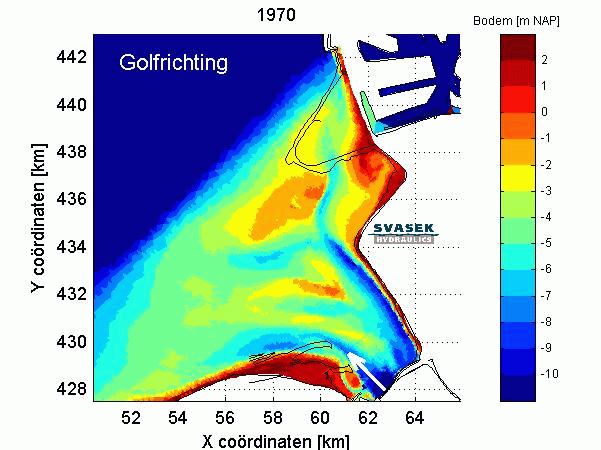

Svašek Hydraulics was asked to determine the morphological developments in the entrance of the Haringvliet by morphodynamic modelling. The animation shows the seabed changes from 1970 to 1986.

The basis of the calculations is a morphological tidal cycle. For each year various wave conditions and sluice discharges from the Haringvlietsluizen were taken into account.

For the modelling FINEL2D (hydrodynamic modelling), the morphologic module (morphodynamic modelling of sand, silt and sand/silt interaction) and SWAN (wave propagation, growth and breaking) and was applied.


Golfrichting = wave direction
